Remote Access Demonstration

… nearly everything you can do in front of the analyzer you can do remotely?
… we have been working closely with our customers to bring you an even better service?
… a lot of our customers have seen the number of engineer callouts drastically reduce, saving them time and money?

Pi’s sleek and modern Remote Access solution

Pi has always been a leader in developing new technology and have had a remote access system for over 10 years! The latest iteration of remote access is now a key part of our solution toolbox. Here are some of the features of our remote access:

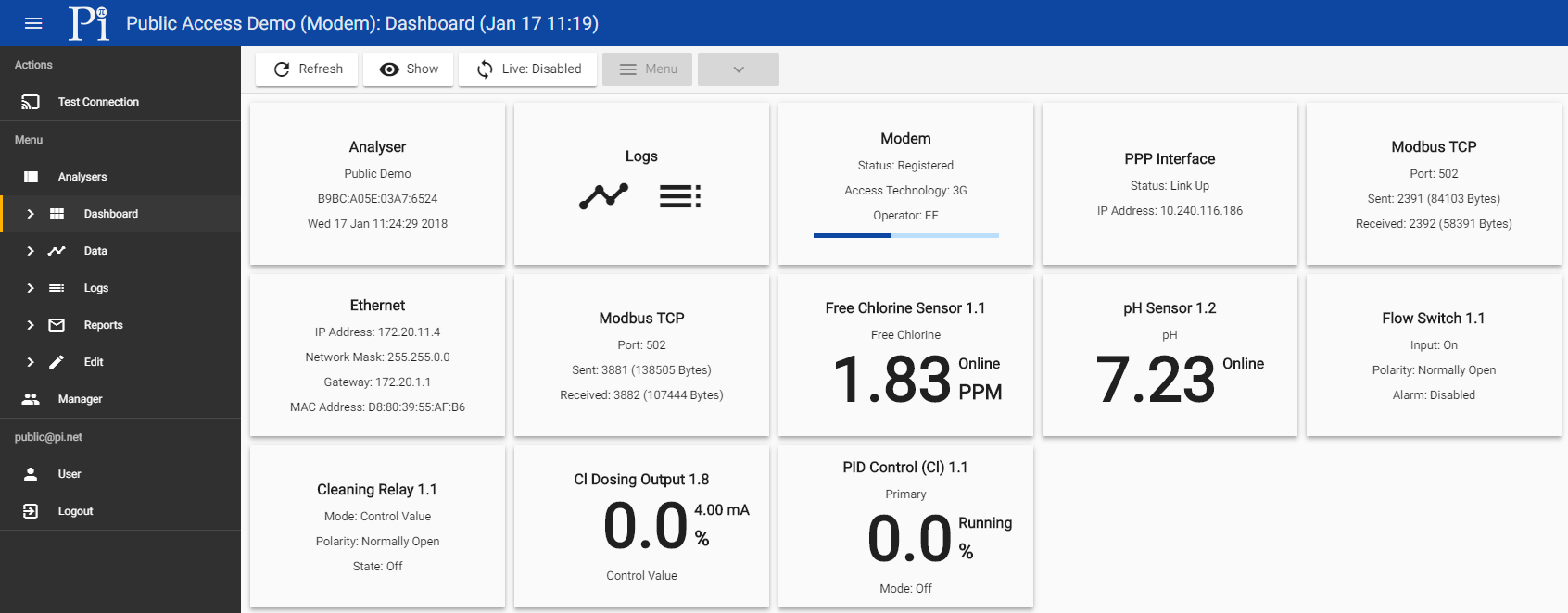

User interface – The interface mimics the analyzer, making the data and other features easy to find. Anyone already familiar with the CRIUS^® analyzer will already be familiar with remote access. Anyone requiring training can now be trained remotely using remote access and Skype.

User control – Each user has their own customizable access rights for what they can view and change on the analyzers. This is set by the ‘parent’ user.

Speed – The service now runs around 50 times faster than its predecessor, allowing users to connect and download the current sensor values and settings in under 30 seconds (test performed on CoagSense coagulation controller with 27 different devices such as sensors!).

Reduced data costs – By making the connection between the server and analyzer more efficient, Pi has reduced the amount of data required for nearly all tasks thereby significantly reducing costs.

Customer branding – On request, Pi can brand the remote access theme to promote a customer’s brand.

Data analysis – The graphical interface is a powerful and flexible tool for viewing your sensor data. The way we handle your analyzers data means that every single data point is stored in the cloud, allowing a user to download 3 months’ worth of data with a single click.

Password reset – If a password has been lost or forgotten, a user can enter their email address into the password reset function which will then email a list of instructions on how to reset it.

Data limit – Users can now limit how much data each analyzer can use per day, meaning no more unexpected data costs.

So what can Remote Access do for you?

The remote access service has always been designed to save you time and money by allowing you access to the analyzer and its data from anywhere in the world. Now remote access can assist as a tool in doing a lot more:

• Remotely checking and changing settings for customers who may not be confident in doing so or who may not have access to the analyzer.
• Allowing Pi’s service team to temporarily remotely connect to the analyzer if customers have an issue and are unsure about how to solve it.
• Automatically sending daily/weekly reports of data logs and/or status logs to users from the server (no mobile data costs from the analyzer).
• Easily view when maintenance is required or due on analyzers, allowing users to efficiently plan which sites to visit and when.
• Know when alarms activate on the unit within seconds by enabling text and/or email alerts direct from the analyzer.
• Tune control values to optimize dosing without the need to visit the site.
• Analyze stored data to investigate incidents, explain issues or validate the process.
• Save money by reducing the number of callouts and the number of miles your engineers travel!

But what about security?

When the analyzer and remote access server communicate, Pi uses a ‘Pre-Shared Key’. This creates a secure connection between the server and analyzer. The key acts as a password and without it the analyzer will not respond. The key is randomly generated in every analyzer making it unique to each, and if required the key can be re-generated from the analyzer. The analyzer can also be connected directly to a Virtual Private Network (VPN) which blocks unwanted traffic and connections automatically and will only transfer information between the analyzer and server.

How does user access work?

Each user has their own username and password. This means that what they see and what they can do can be customized so only authorized users can make changes.

How are the analyzers and customers managed?

If a user creates a group, then they become that group’s ‘parent’. The ‘parent’ of a group creates the analyzers and users for that group. If a user is a ‘parent’ to more than one group, they will also have the ability to create users that can access multiple groups from a single user account.

• Log into the portal using email “public@pi.net” and password “12345678”. Please note that remote access is not compatible with Internet Explorer.
• Select either the Modem or Ethernet demo analyzer.

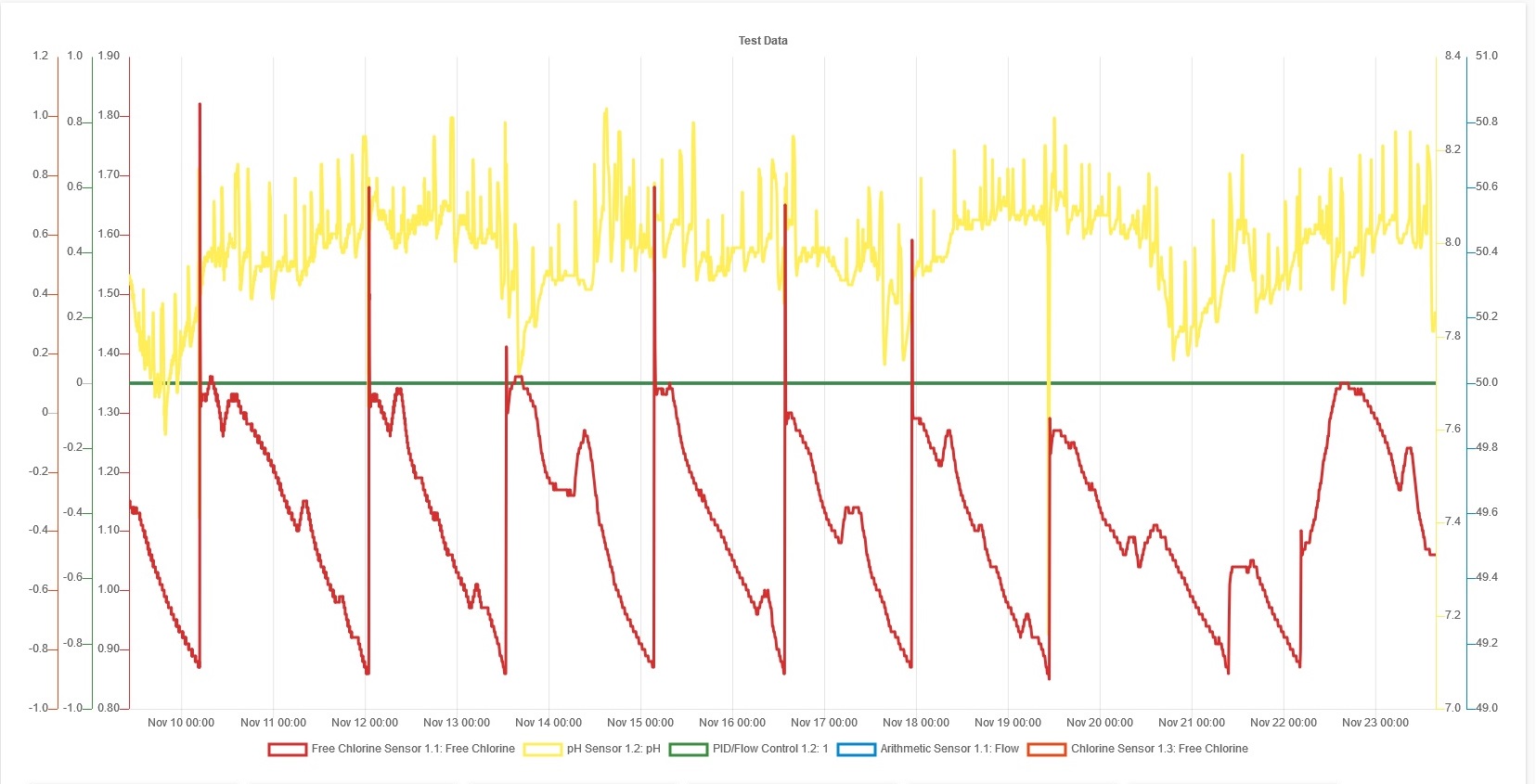

• Select ‘Data’ on the left. You can change the data range in the top left corner.
• The settings below the graph allow you to change what information is displayed on the graph, and how it is displayed.
• Try enabling or disabling a few parameters, and edit a parameters scale. The graph will update in real-time.
• To download an image of the graph, simply press ‘Download Image’. If you wish to download the data, press ‘Download CSV’.

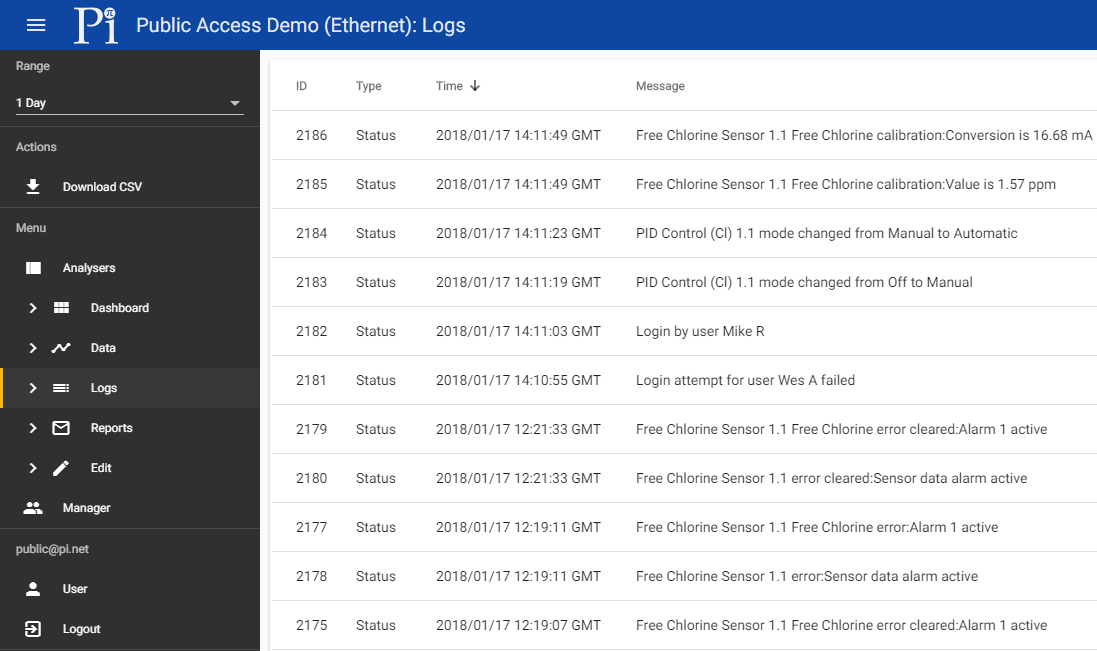

• To download the status logs, select ‘Logs’ on the left then press ‘Download CSV’. The data range can be changed at the top left of the page.

• Log into the portal using email “public@pi.net” and password “12345678”. Please note that remote access is not compatible with Internet Explorer.
• Select either the Modem or Ethernet demo analyzer.
• Download the latest settings by pressing ‘Refresh’.
• Select the PID Control (Cl) tile.
• To change the run mode, select ‘Control Setup’ then click ‘Edit’. From here you can change the mode to ‘Off/Manual/Automatic/Semi Automatic’. When selected, press ‘Save’ to close the setting window.
• To change the manual value, select ‘Output Setup: Primary’ then click ‘Edit’. Enter your new manual value and press ‘Save’.
• To change the PID set-point, select ‘Setup: Setpoint’ then click ‘Edit’. Enter your new setpoint and press ‘Save’.
• To change PID gain values, select ‘Setup: PID Tuning’ then click ‘Edit’. Enter your new values and press ‘Save’.
